Module

make
Make

Index

1. About module/how to use
2. Collection definition
3. Create an Connection

About module/how to use

Module type	Module name	Description
Trigger	Watch BOT Done	The flow can start with completing BOT execution as a trigger. Obtain the BOT output value, which can be used in the remaining flow.
Action	Execute BOT	BOT on the Cloud BOT can be executed as an action. You can specify the input values when BOT is executed. In addition, you can use the output values at execution in the remaining flow.
Action	Upload File	Upload the file data to Cloud BOT. File ref value can be obtained as an output value, as well as the output value can be used with Execute BOT.
Action	Download File	Download the file data from Cloud BOT. You can retrieve the file from the File ref value.
Action	Make an API Call	You can call the API provided by the cloud BOT using the connection set on Make.

Watch BOT Done (Trigger)

The flow can start with completing BOT execution as a trigger.
Obtain the BOT output value, which can be used in the remaining flow.

Watch BOT Done setting values

Webhook

Specify Webhook.
A trigger will be activated when the BOT set with this Webhook completes execution.
Click here to learn more about creating Webhooks.

About the Webhook settings

Webhook name	Specify any name.
Connection	Select the connection. Click here to learn more about creating connections.
Language	Select the language used when executing BOT.
Contract	Select your Cloud BOT contract. You can select your Cloud BOT contract in which the external connection is enabled.
BOT	Select the BOT to trigger. You can select the BOT that the external connection is enabled.

Watch BOT Done execution result (OUTPUT)

BOT Result Collection is output as the execution result (OUTPUT) of the module.

Refer to BOT Result Collection for details.

Execute BOT (Action)

BOT on the Cloud BOT can be executed as an action.
You can specify the input values when BOT is executed. In addition, you can use the output values at execution in the remaining flow.

Setting values for Execute BOT

Connection	Select the connection. Click here to learn more about creating connections.
Language	Select the language used when executing BOT.
Contract	Select your Cloud BOT contract. You can select your Cloud BOT contract in which the external connection is enabled.
BOT	Select the BOT to execute. You can select the BOT that the external connection is enabled.
BOTinput value	Specify the input value of the BOT. If not set, it will run with BOT's default values. *Data name is displayed between BOT and Async. （About inputting BOT input values）
Async	[Yes]Run the BOT asynchronously. The response is returned immediately after the BOT starts running. [No]Run the BOT synchronously. The response is returned when the BOT completes its execution. *If the BOT is executed asynchronously, or if 30 seconds have passed since the BOT starts running, the response will be returned at that point even if the BOT is still executing. The status will be “2” (running). In addition Cast URL is published.

Refer to this page for definition of INPUT Bundle Collection of Execute BOT.

About inputting BOT input values

The input method changes depending on the data type of the BOT input value. It is compared with the input interface on the Data Viewer of the Cloud BOT.

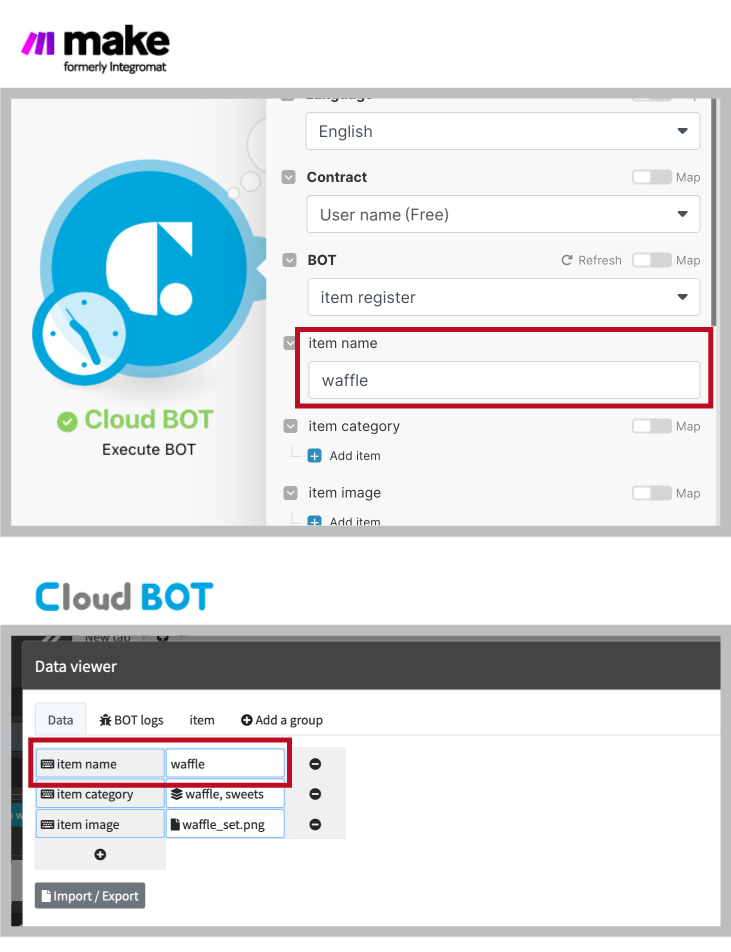

Text type
Text type data specifies a single string.

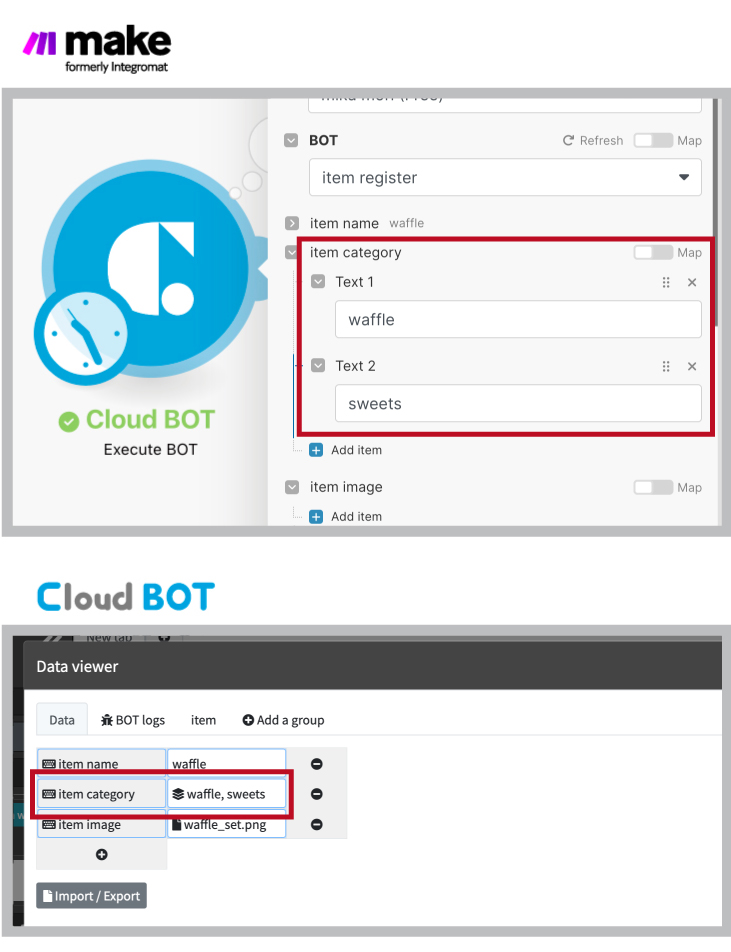

Multiple text type
Multiple text type data specifies multiple strings (array).

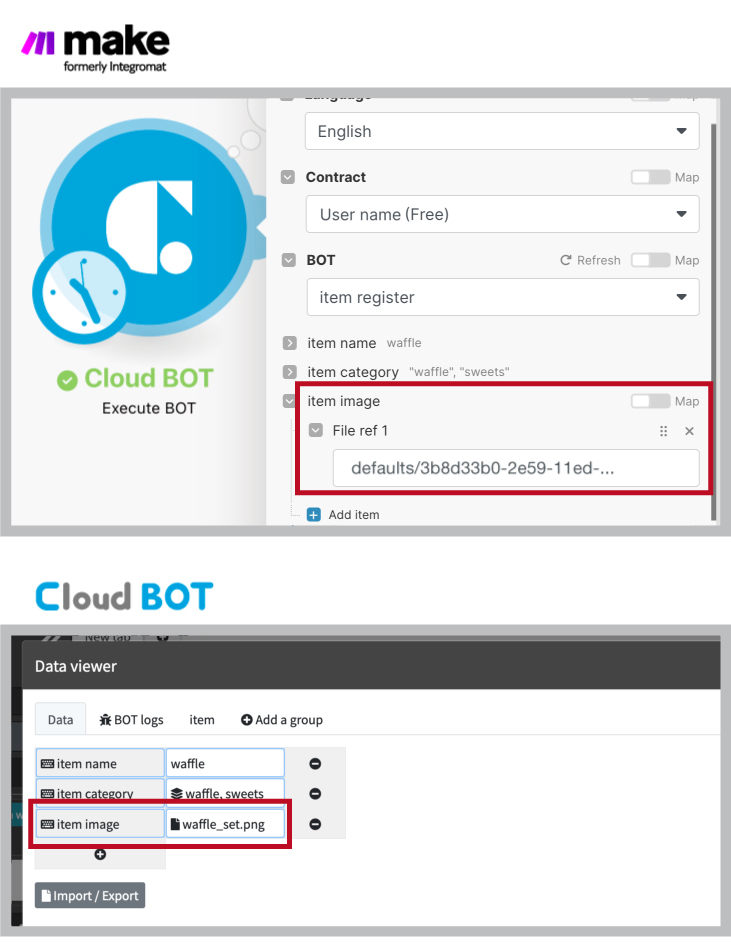

File type
File type data specifies File ref value (array).

Group
Group rows are represented by an array. Click "Add item" to add more group rows.

How to input the row added changes depending on the data type. It is compared with the input interface on the Data Viewer of the Cloud BOT.

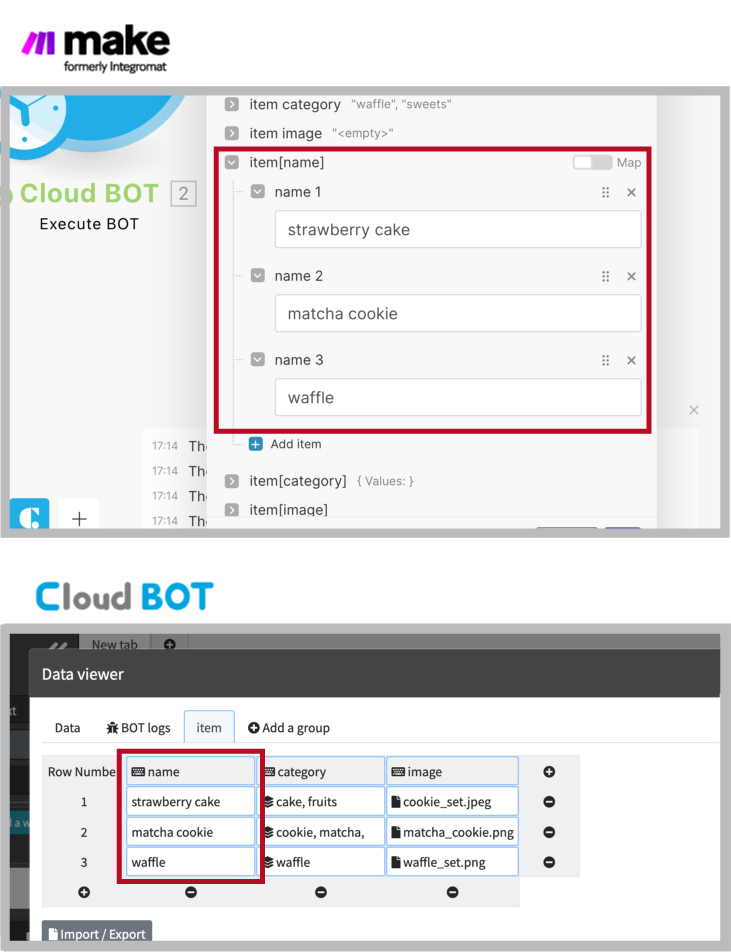

Text type
Text type data specifies a single string.

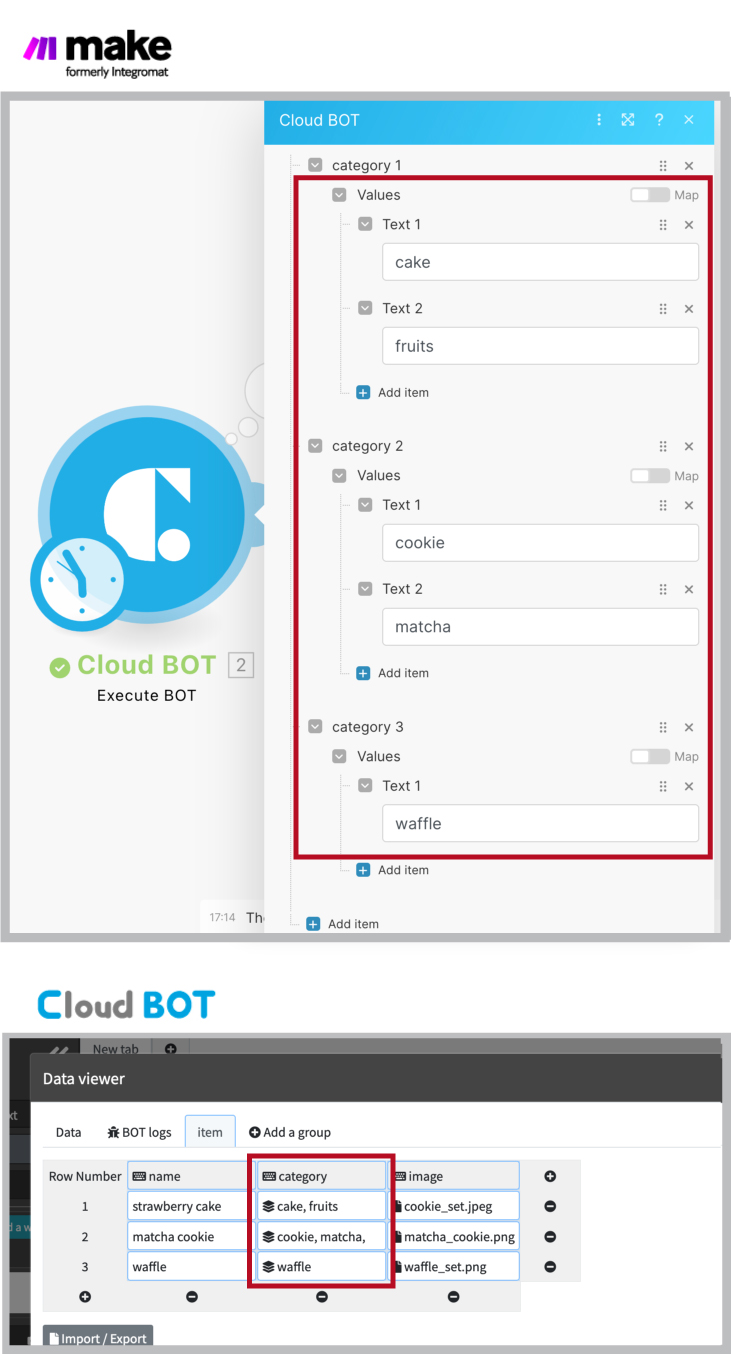

Multiple text type
Multiple text type data specifies multiple strings (array).

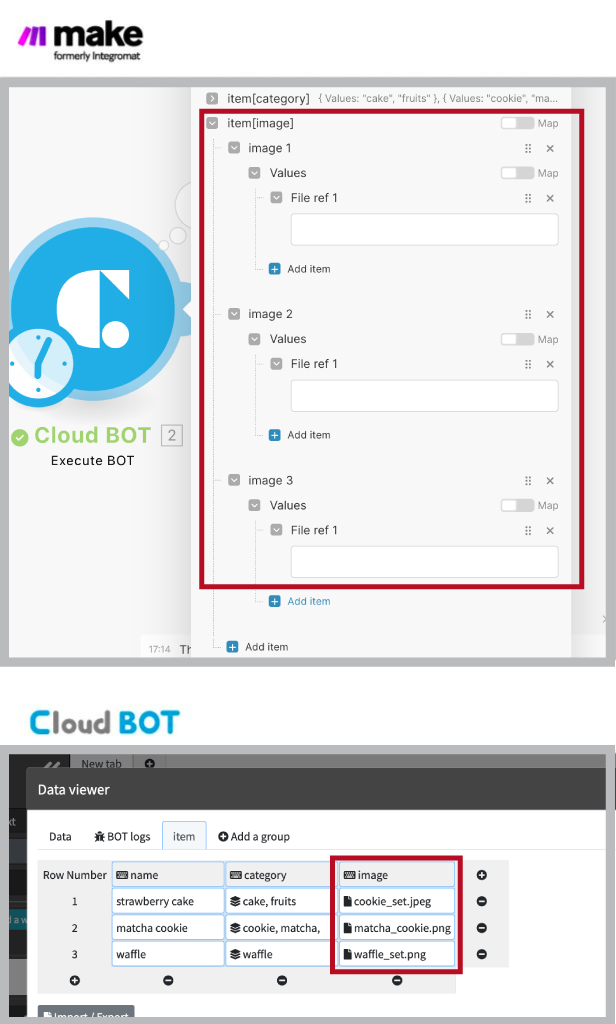

File type
File type data specifies File ref value (array).

Execute BOT execution result (OUTPUT)

BOT Result Collection is output as the execution result (OUTPUT) of the module.

Refer to BOT Result Collection for details.

Upload File (Action)

Upload the file data to Cloud BOT. File ref value can be obtained as an output value, as well as the output value can be used with Execute BOT.

Setting values for Upload File

Connection	Select the connection. Click here to learn more about creating connections.
Language	Select the language used when executing BOT.
Contract	Select your Cloud BOT contract. You can select your Cloud BOT contract in which the external connection is enabled.
File	Specify the file data to upload. By default, it automatically identifies the file data from the output values of the preceding modules. * You can specify it using Map.

* For specifying a file using Map

File name	Specify the file name. Relate the Name from the previous module's output value.
Data	Specify the binary data of the file. Relate the Data from the previous module's output value.

Refer to this page for a definition of INPUT Bundle Collection of Upload File.

Upload File execution result (OUTPUT)

Upload Result Collection is output as the execution result (OUTPUT) of the module.

Refer to Upload Result Collection for details.

Download File (Action)

Download the file data from Cloud BOT. You can retrieve the file from the File ref value.

Setting values for Download File

Connection	Select the connection. Click here to learn more about creating connections.
Language	Select the language used when executing BOT.
Contract	Select your Cloud BOT contract. You can select your Cloud BOT contract in which the external connection is enabled.
File ref	Specifies File ref value.

Refer to this page for a definition of INPUT Bundle Collection of Download File.

Download File execution result (OUTPUT)

Download Result Collection is output as the execution result (OUTPUT) of the module.

Refer to Download Result Collection for details.

Make an API Call (Action)

You can call the API provided by the cloud BOT using the connection set on Make.

Setting values for Make an API Call

Refer to API references.

Connection	Select the connection. Click here to learn more about creating connections.
URL	Specify a request endpoint. Specify a relative path beginning with "https://api.c-bot.pro/".
Method	Select a request method.
Headers	Specify any number of the request headers.
Query String	Specify any number of the query strings.
Body	Specify a request payload.

Refer to this page for definition of INPUT Bundle Collection of Make an API Call.

Make an API Call execution result

API Result Collection is output as the execution result (OUTPUT) of the module.

Refer to API Result Collection for details.

Collection definition

Execute BOT Parameter Collection (INPUT Bundle Collection)

This is a collection that stores setting values of Execute BOT. The structure is as follows.

Key name	Type	Value
Language	text	Requested language (Japanese: ja, English: en)
Contract	text	Public ID for the API.
BOT	text	BOT ID
{data name} or {group name[data name]}	text or Array	BOT input value
Async	boolean	Synchronous mode (true: synchronous, false: asynchronous)

About BOT input values

The BOT input value changes depending on the data type.

Data type	Type	Value
Text type	text	String
Multiple text type	Array	String array
File type	Array	Array of file ref value

Group

Data type	Type	Value
Text type	Array	String array
Multiple text type/file type	Array	Group Row Data Collection array

Upload Parameter Collection (INPUT Bundle Collection)

This is a collection that stores setting values of Upload File. The structure is as follows.

Key name	Type	Value
Language	text	Requested language (Japanese: ja, English: en)
Contract	text	Public ID for the API.
File name	text	File name
Data	Buffer	Binary data

Download Parameter Collection (INPUT Bundle Collection)

This is a collection that stores setting values of Download File. The structure is as follows.

Key name	Type	Value
Language	text	Requested language (Japanese: ja, English: en)
Contract	text	Public ID for the API.
File ref	text	File ref value

API Call Parameter Collection (INPUT Bundle Collection)

This is a collection that stores setting values of Make an API Call. The structure is as follows.

Key name	Type	Value
URL	text	Request end point
Method	text	Request method
Headers	Array	Headers Collection array
Query String	Array	Query String Collection array
Body	text	Request payload

Bot Result Collection (OUTPUT Bundle Collection)

This is a collection that stores execution results for Watch BOT Done, Execute BOT. The structure is as follows.

Key name	Type	Value
Code	uinteger	Respond code
Job ID	text	Job ID
BOT ID	text	BOT ID
BOT name	text	BOT name
Status	integer	Run status (0: Success, 1: Error, 2: running)
Start time	date	Date and time when execution started
Elapsed time	integer	Number of seconds for execution
Cast URL *	text	Cast URL
Message	text	Announce message
Output	Collection	Output Collection

* Displayed when status is 2.

Upload Result Collection (OUTPUT Bundle Collection)

This is a collection that stores the execution result (OUTPUT) of Upload File. The structure is as follows.

Key name	Type	Value
File ref	text	File ref value

Download Result Collection (OUTPUT Bundle Collection)

Download Result Collection (OUTPUT Bundle Collection)of Download File. The structure is as follows.

Key name	Type	Value
Data	buffer	Binary data
File name	text	File name
File size	number	File size (byte)

API Call Result Collection (OUTPUT Bundle Collection)

This collection stores the execution result (OUTPUT) of Make an API Call. The structure is as follows.

Key name	Type	Value
Body	Collection	Request body
Headers	Collection	Request header

Output Collection

This is a collection that stores the execution result (OUTPUT) output value. Data and groups have different values. The structure is as follows.

Key name	Type	Value
{data name} or {group name}	Data name: text or Array / Group name: Collection	Data name: output data value / Group name: Group Colletcion

About output values

The output data value changes depending on the data type.

Data type	Type	Value
text type	text	String array
Multiple text type	Array	String array
File type	Array	File Collection array

File Collection

This is a collection that stores a file. The structure is as follows.

Key name	Type	Value
File ref	text	File ref value
Meta	Collection	Meta Collection

Meta Collection

This is a collection that stores file metadata. The structure is as follows.

Key name	Type	Value
File name	text	File name
File size	number	File size (byte)
Timestamp	number	File created date and time (UNIX timestamp)

Group Collection

This is a collection that stores a group. The structure is as follows.

Key name	Type	Value
{data name}	Array	Output data names array / Group Row Data Collection array

Group Row Data Collection

This is a collection that stores a row data of a group. The structure is as follows.

Key name	Type	Value
Values	Array	Input data values array / Output data values array

Headers Collection

This is a collection that stores a request header. The structure is as follows.

Key name	Type	Value
Key	text	Header name
Value	text	Header value

Query String Collection

This is a collection that stores a query string. The structure is as follows.

Key name	Type	Value
Key	text	Query parameter name
Value	text	Query parameter value

Create an Connection

When using a CloudBOT module in a Make scenario, a Connection must be created. It can be created from the configuration of the module to be used.

1. Click "Add" in Connection Settings.

2. You will be asked to sign in to the service.
*Skip this step when you have already signed in to the service.

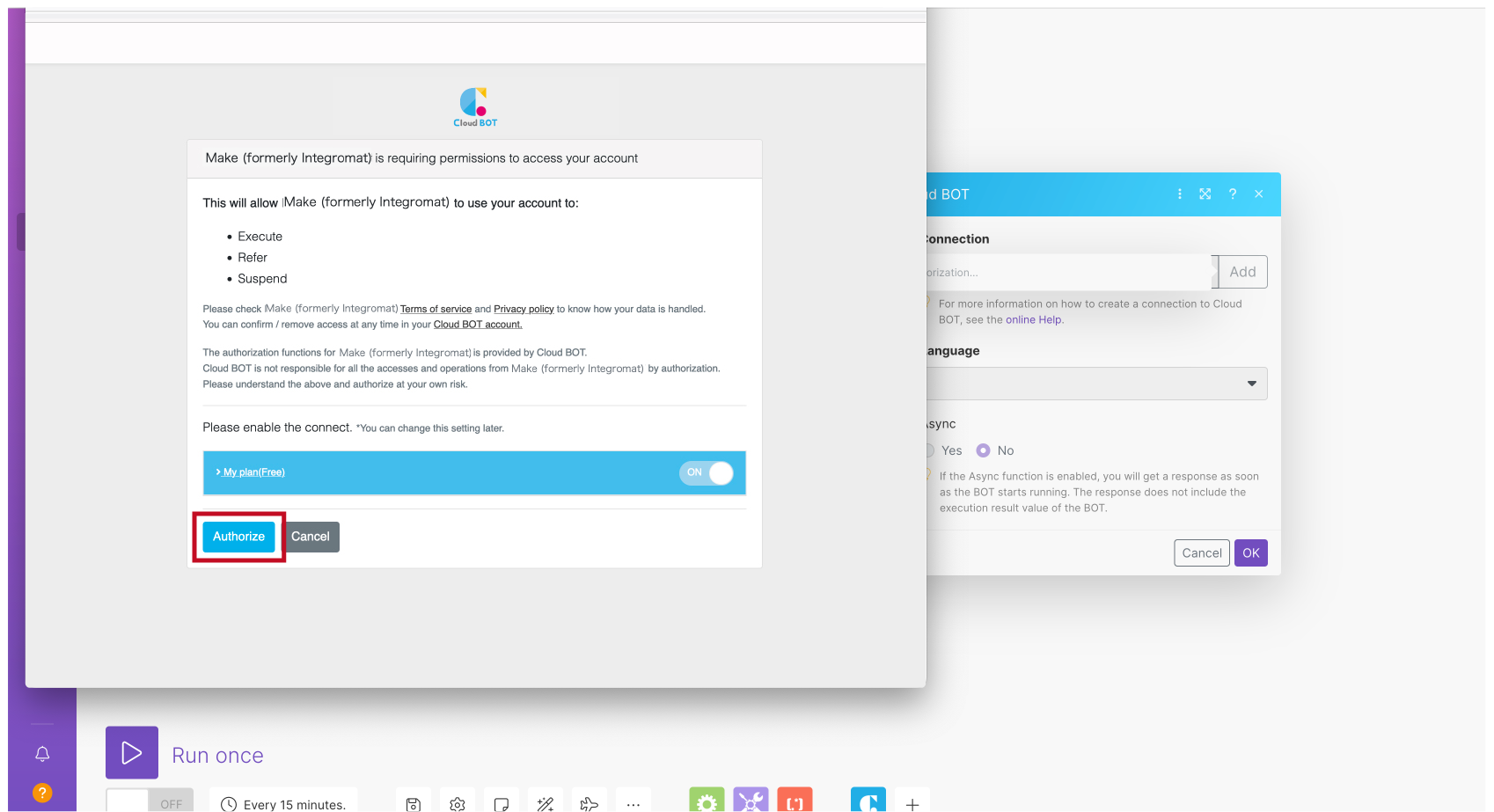

3. The Authorization Request screen will appear. After confirming the Terms of Use and Privacy Policy, click "Allow".

4. Enter any name in the Connection name field and click "Save".

< Go to previous section (Preparation for connecting with Make)
